914

Name: Caterpillar 914
Brand: Caterpillar
SKU: 914

Wheel loaders, Small 60-150 kW

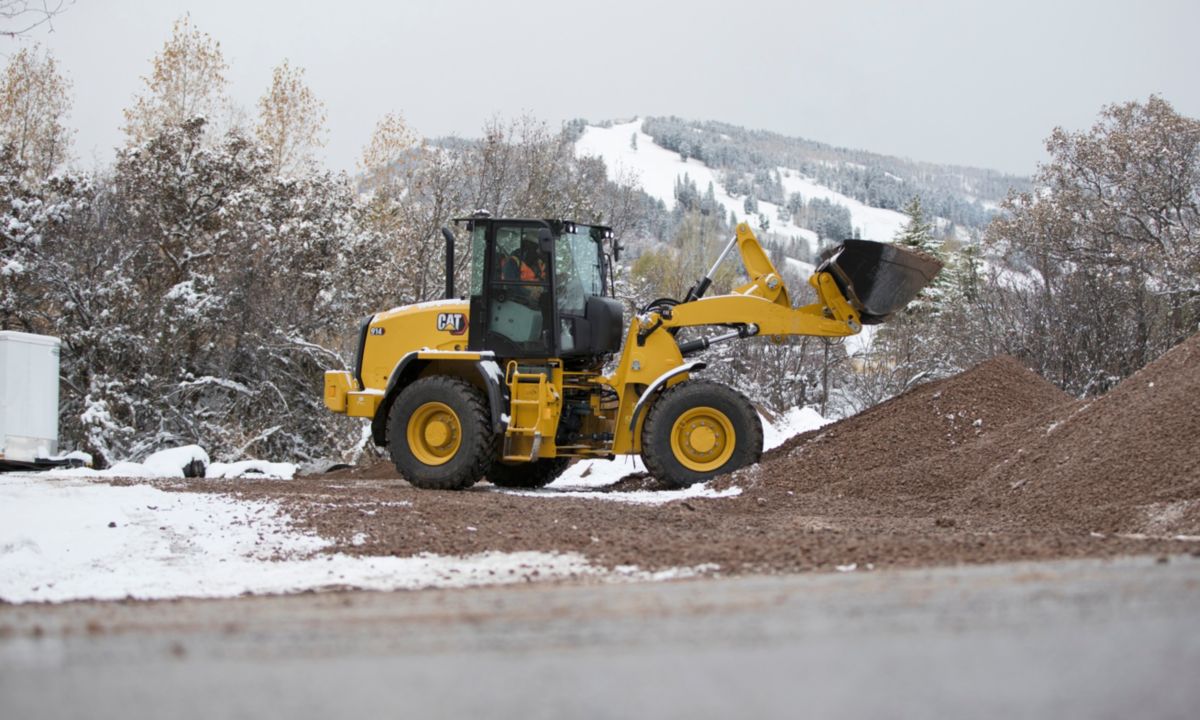

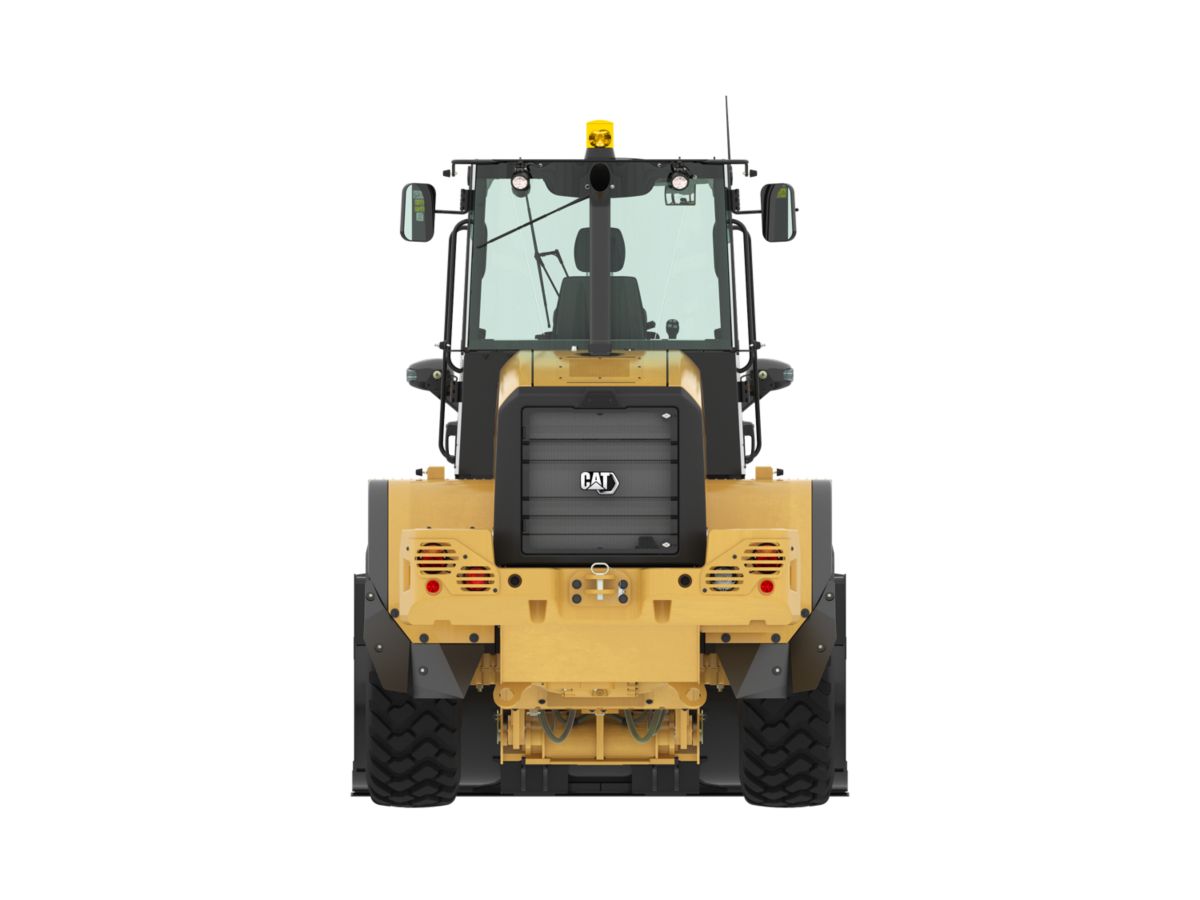

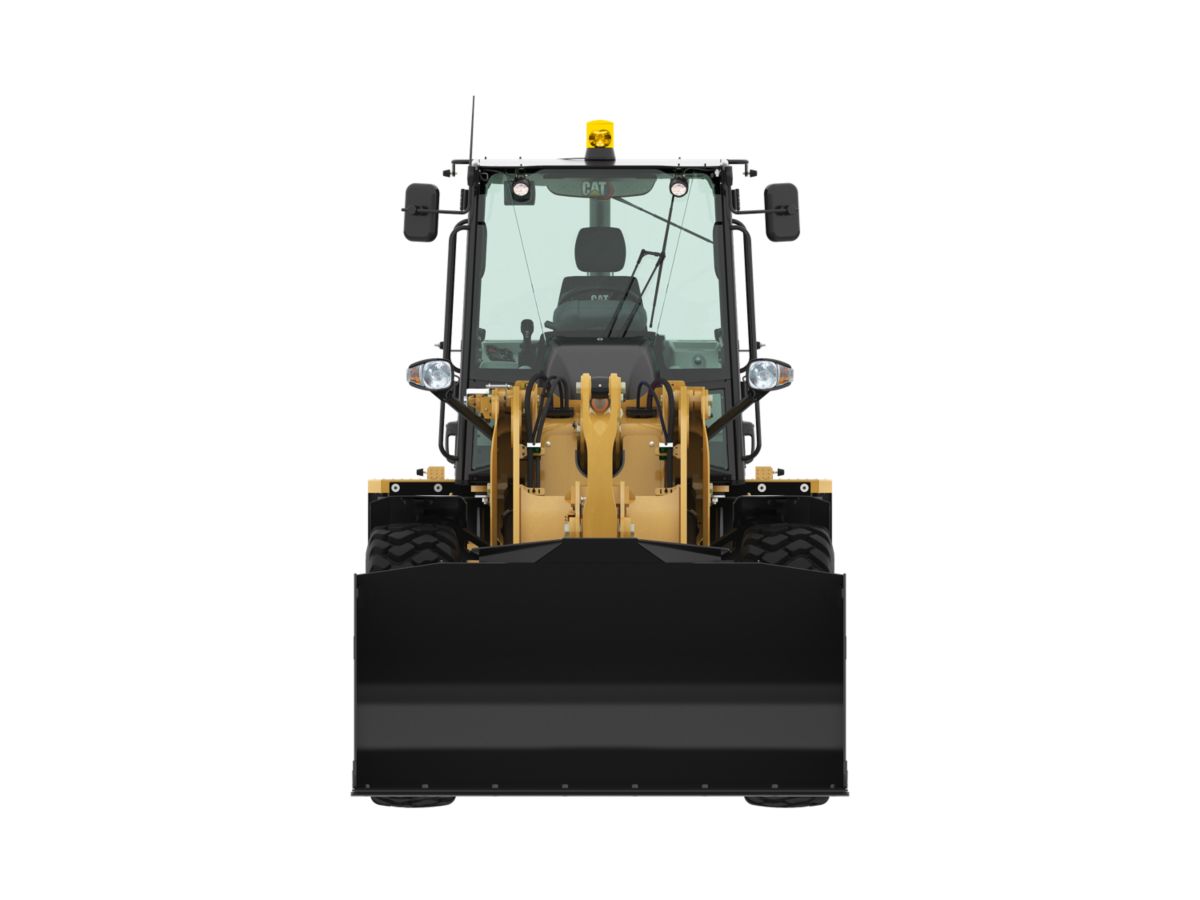

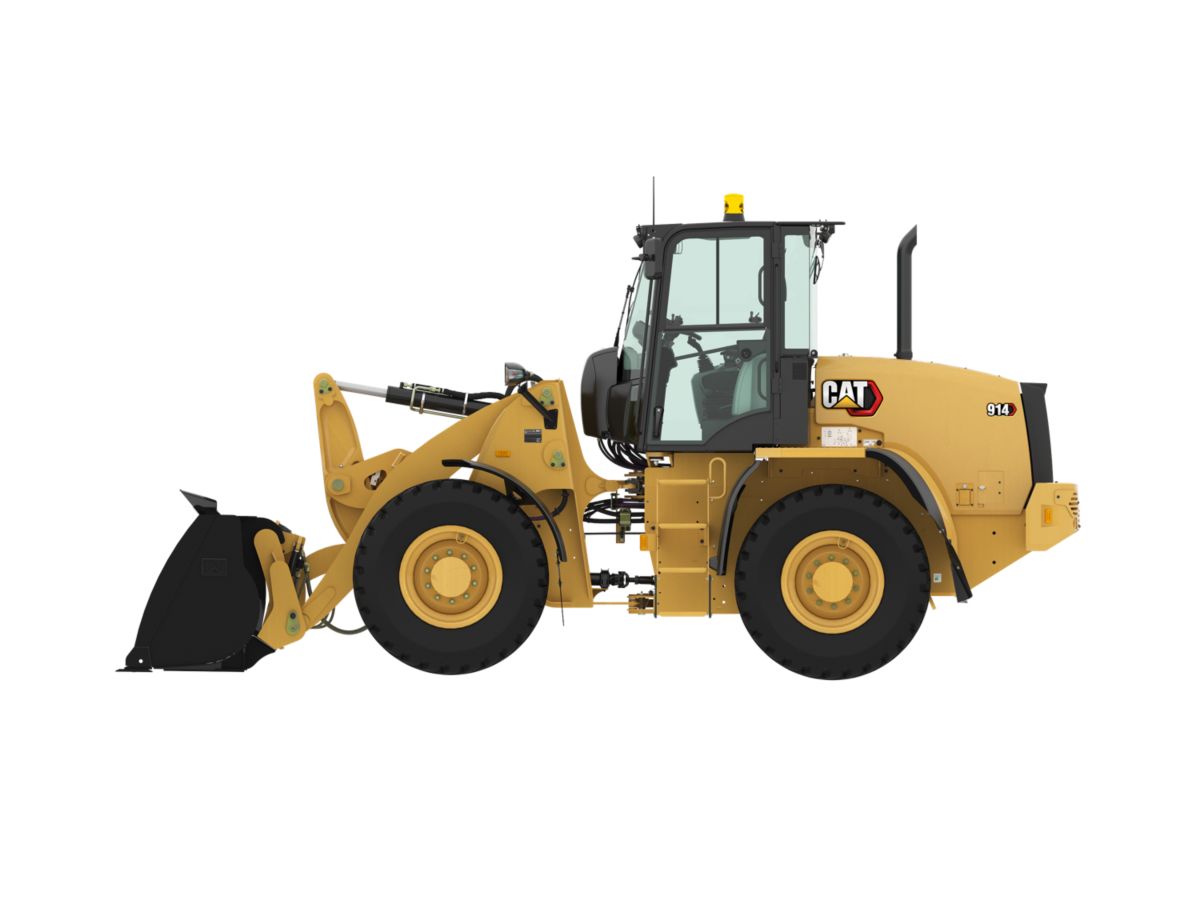

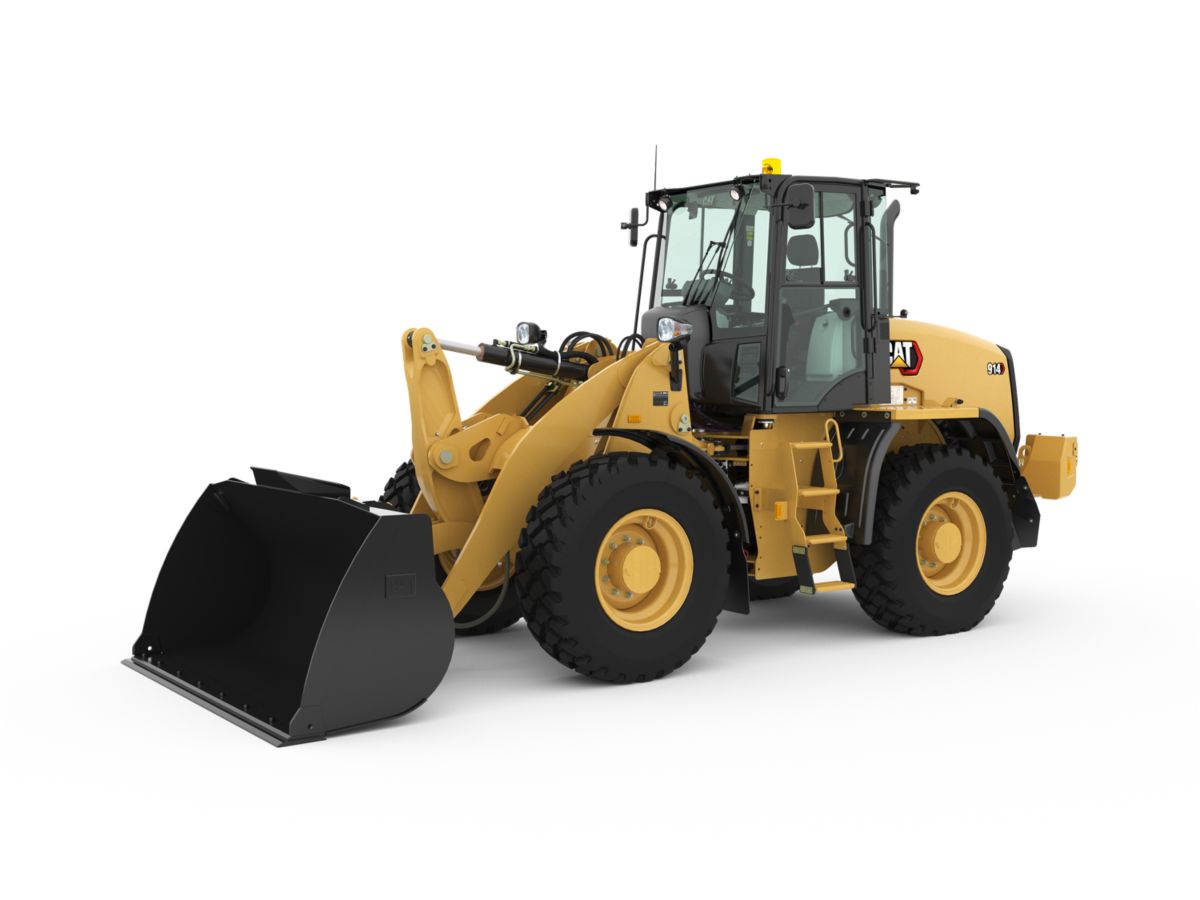

The Cat 914 Compact Wheel Loader features a Cat C3.6 Stage V engine, state-of-the-art electrohydraulic system, and Cat optimized Z-bar loader linkage that delivers the performance and breakout forces of a Z linkage traditional with the load management and parallelism capability of a tool carrier. Low noise levels, a large cab with all-round visibility and intuitive controls ensure maximum comfort throughout the working day.

Contact us Rent - Get a quote Check in used equipment Information here above refers to the latest serie available. Rental fleet machines may belong to previous series of the same model.

Technical information

Variable data depending on the machine configuration

Weight (kg)

8700

Power (kW)

Bucket capacity (m3)

1,5 - 3,0

Engine

Cat ACERT® C3.6 Stage V

PIN HEIGHT (mm)

3701

Transport width (mm)

2400

Features

Cat ACERT® C3.6 Stage V engine

The Cat ACERT® C3.6 Stage V engine complies with today's Stage V emissions standards, allowing the operator to work without interruption, all management is entrusted to the machine. It provides rapid response to load changes while ensuring the same amount of power, regardless of operating conditions.

Continuously variable transmission

The Cat® continuously variable transmission is based on a hydraulic pump and a variator assembly that allows for a smooth and continuous variation of the transmission ratio between engine speed and machine speed. This makes it possible to reduce consumption by up to 25%, increase traction and power, even at low revs, and recover energy during deceleration to increase efficiency.

Electrohydraulic controls

The electro-hydraulic, ergonomic controls with very low drive effort and cushioned with the seat ensure high comfort throughout the entire work shift. The integrated button for changing direction and the sliding “slide” for proportional control of the third hydraulic function make work easier.
